MicroTestSystem, Inc.

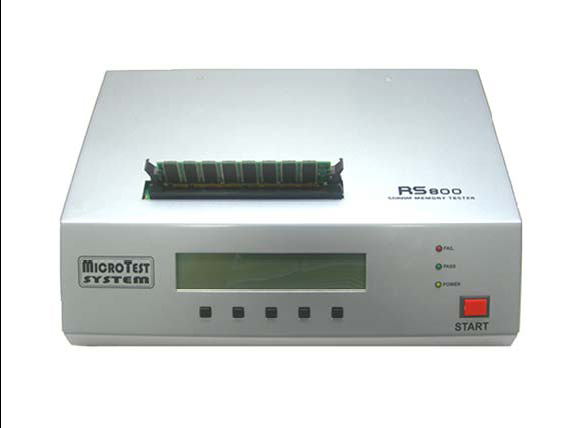

RS800-166 SDRAM Tester

(download brochure)

Features:

• Test both registered and unbuffered 168-pin DIMM modules
• 5-option buttons with functions indicated on display
• 1 heavy duty test start button
• LED indicating testing status
• USB-port interface with PC for configuration test options
• Handler interface port
• Yamaichi Burn-In socket with socket saver
• Backlit LCD display
• Auto Identifying Device under test
• Configurable test devices
• True Clock and Bus Speed testing


Upgradeable Options:

• Online software and firmware downloads
• SODIMM adaptor
• IC Chip Testing Adaptor (available post release)


Specifications:

• Clock Speed: 100, 133, 166 Mhz
• Address Size: 13 Columns, 13 Rows, 2 Bank Selects
• Data Width: 72 bits
• DC Parameters: VCC 3.0V - 3.6V, LVTTL compliant signaling\
• CAS Latency: 2 & 3 Clocks
• Trd: 2 / 3 / 4 Clocks
• Burst Length: 4 / 8
• Refresh Cycle: Auto / Self Refresh
• AC Pattern:
  • Open / Short Test (OST)
  • Checkerboard
  • March + SR,
  • PMOVI,
  • MarchG
  • MarchB
• SPD Option: Program / Read / Verify 0 – 255 Bytes
• Power Input: 110Vac / 240Vac switchable 50 Hz / 60 Hz
• Operating Temp: 25 – 115 Degrees F
• Dimensions: 16” x 11” x 4”
• Weight: ~6 pounds
